Front
Tubular Control Arms - Boxed with Poly Bushings (G)
Item: 755 FITS STOCK TYPE SPINDLES
Item: 756 FITS TALL TYPE SPINDLES
$369.00
Built to stock specifications
NOTE!
BALLJOINTS
FOR THESE IS AN OPTION
THAT MUST BE ADDED TO CART
WE HIGHLY
RECOMMEND THAT YOU WRAP ANY EXHAUST THAT COMES NEAR THE PASSENGER SIDE
REAR BUSHING. A HEAT SHIELD CAN ALSO BE USED ALONG WITH OPTIONAL
DELRIN BUSHINGS.
FITS 78-88 G BODY
CARS

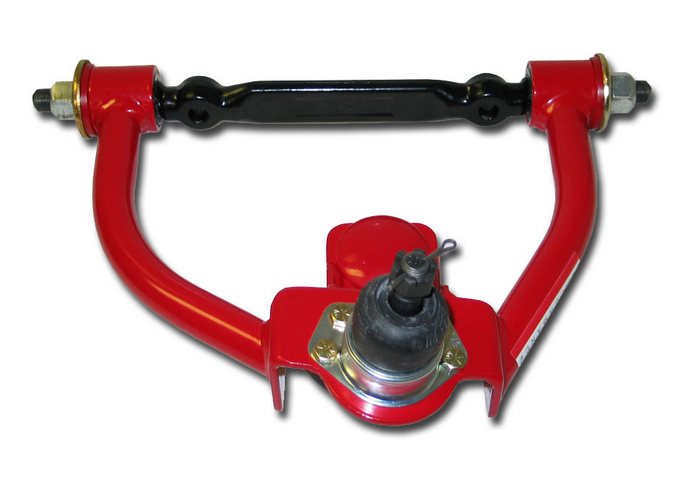

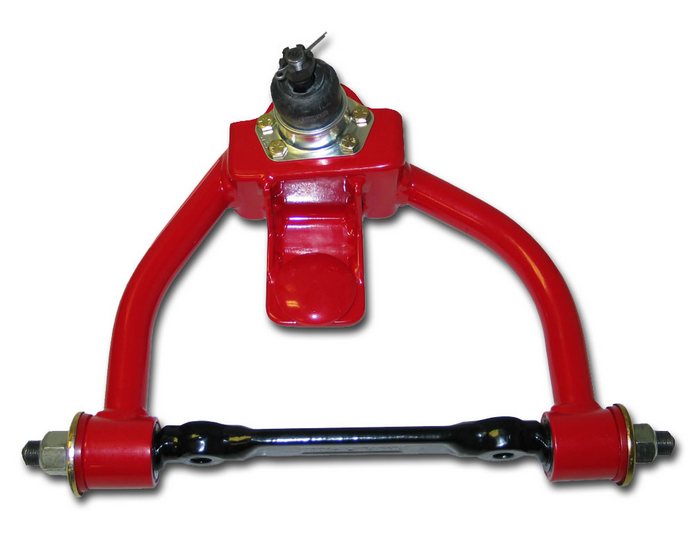

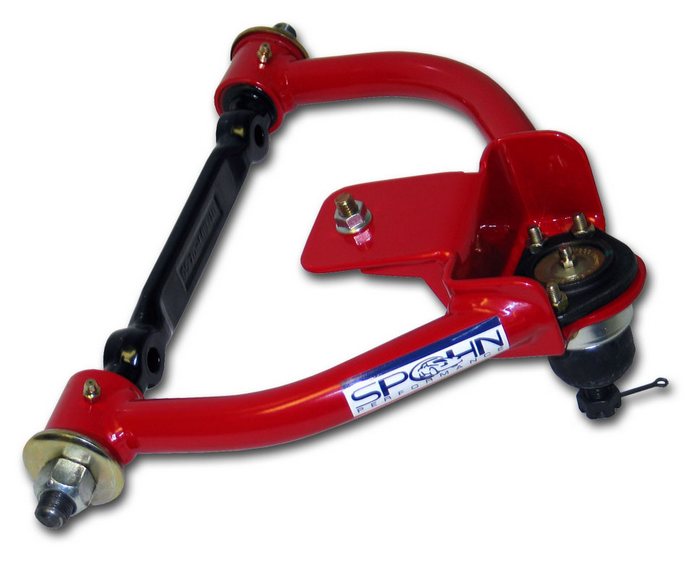

Our
tubular upper a-arms provide additional header clearance and are assembled with
new high strength steel offset cross shafts and heavy-duty bushing retainers.
Not only will they provide maximum rigidity and great looks, they also drop
almost four pounds of unsprung weight! NOTE! Improvement over the
other type of control arm we used to sell - these have a bump stop installed to
prevent the control arm from contacting the frame.
Specifications:
·
1” x .095”
seamless DOM tubing
·
CNC cut and
formed .188” thick steel ball joint box
·
Completely
boxed ball joint box for maximum rigidity
·
Low deflection
greaseable polyurethane bushings / Delrin optional
·
Heavy duty
bushing retainers
·
High strength
steel offset cross shafts with steel locking nuts
·
Fully gusseted
bump stop mounts with polyurethane bump stops
·
Completely
powder coated for a durable and brilliant finish
·
Available with
new greaseable ball joints installed or install your
own ball joints.
|
Tubular Upper Control
Arms -
