This item requires a SIGNATURE upon delivery
Additional shipping charges may apply to Hawaii and Alaska orders

Effective IMMEDIATELY.  Any orders with heavy or bulky items being sent to Hawaii, Alaska may be assessed extra charges for shipping.  If unsure, email us first before ordering.  Thanks.

 - 46mm wastegate pipe with or without a gate
 - Also available WITHOUT any wastegate provision

$285 - $485

All downpipes we sell are designed for use with aftermarket headers originally designed by ATR and Kenne-Bell.  Those headers have the crossover pipe from the driver's  side of the motor coming up into the motor compartment where it joins the passenger side pipes right before the turbo. The downpipe is designed to sweep farther out to clear this crossover.  Trimming of the plastic fenderwell is suggested as the downpipe will be real tight to this area.

THIS DOWNPIPE WILL WORK WITH STOCK STYLE HEADERS IF YOU WANT TO USE AN EXTERNAL WASTEGATE PIPE BUT DON'T WANT TO USE NON STOCK HEADERS.

 This RAW finish 3" 304 stainless steel downpipe is an external 46mm  v-band style wastegate setup.

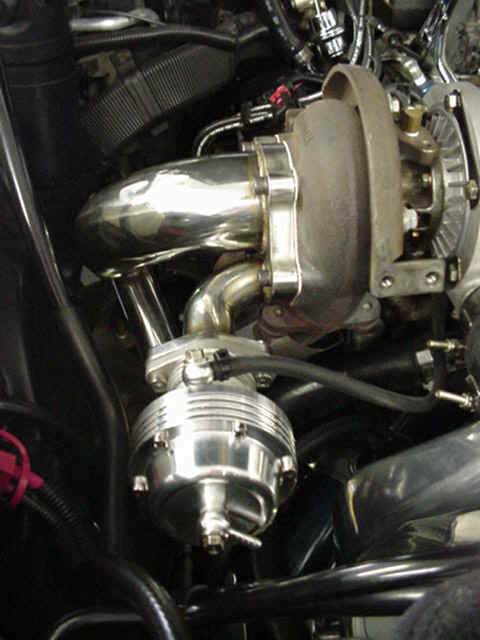

My own GN is lowered with drop spindles and the front springs are also cut a bit so it sits REAL low.  Clearance to the upper control arm is tight if the car is lowered but so far so good on my GN.  Other than that the fit is excellent.  Just want my customers to know up front what to expect.  Tubular control arms offer more clearance.  The OPTIONAL dump pipe available is a nice tight slip fit and no clamp is required

If you do NOT already have a boost controller you WILL need to get one as the spring in the external wastegate is set for 10lbs.  We are carrying the Turbonetics 0-50 lb boost controller so you can order one of those if needed.  You can also use the RJC style boost controller as well as the many other types that are out there.

Options - DUMP PIPE $85
TURBONETICS 0-50lb BOOST CONTROLLER $109

CLICK ON PICS BELOW TO SEE FULL SIZE

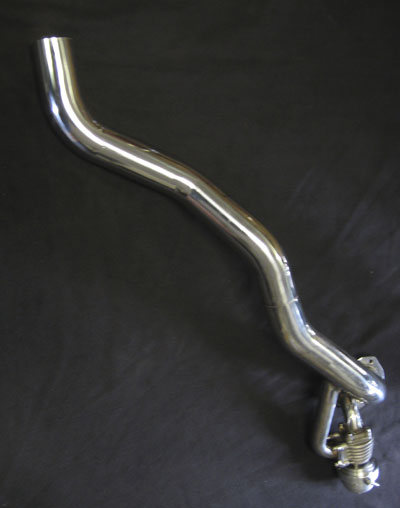

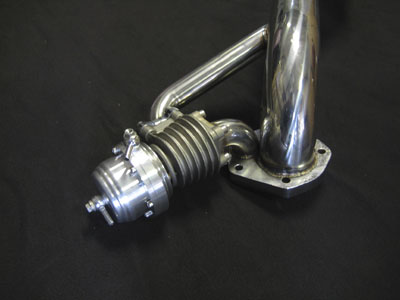

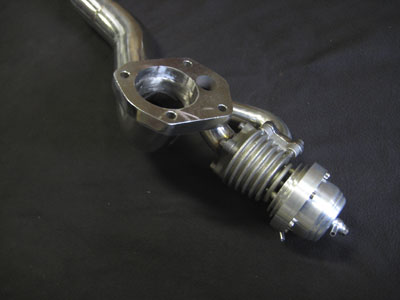

PICS below are of the V-BAND 46mm wastegate pipe


Want to plumb your own wastegate setup??   We also have this downpipe with no provisions for a wastegate.  Remember this is basically just a pipe with a flange on it that bolts to the turbo.

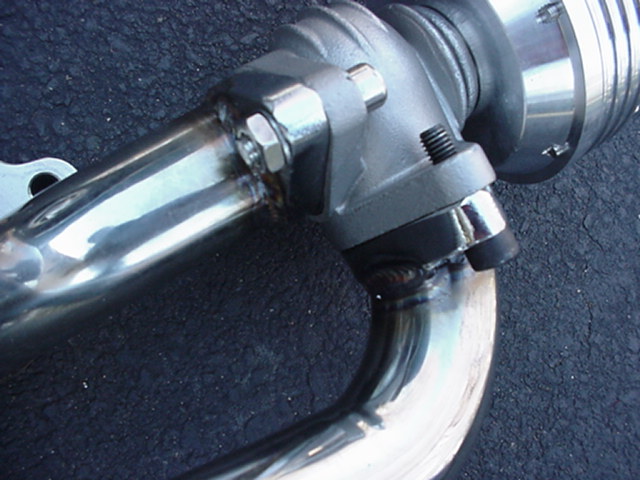

All V-BAND downpipes have an 02 sensor bung installed in the downpipe as shown in the picture below.

Stainless Steel 3" Downpipes.  46mm v-band external wastegate and also NO WASTEGATE available

Quantity

SELECT YOUR DOWNPIPE FROM THE DROP DOWN MENU


Click on the optional boost controller if you need one!

OPTIONAL  BOOST CONTROL - Add $109.00


DUMP  PIPES ARE AVAILABLE SEPARATELY
IF YOU ALREADY HAVE A 3" DOWNPIPE
They measure approximately 13" overall length




WE ALSO HAVE TEST PIPES!




Stainless Steel 3" Dump/Test Pipes


Quantity

SELECT YOUR DUMP or TEST  PIPE
FROM THE DROP DOWN MENU
